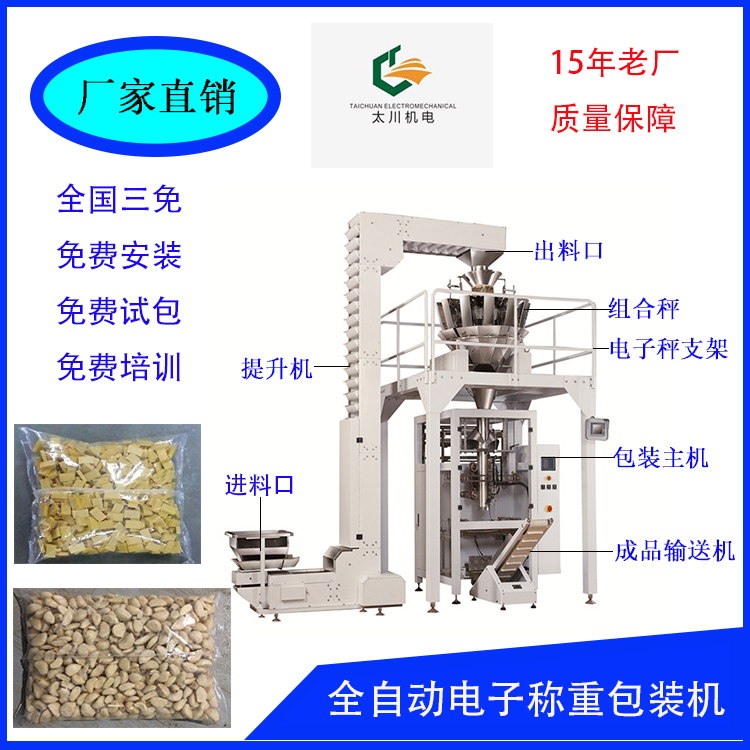

TCLB-520 大型立式全自动包装机

TCLB-520  LARGE VERTICAL PACKING MACHINE

技术特点：

1．采用彩色触摸屏和稳定可靠的双轴高精度输出的PLC控制、制袋
          计量、充填、封合、打码、切袋一次性完成。

2．气路控制和电路控制电箱独立分离，噪音小，电路更稳定。

3．采用双皮带伺服拉膜：拉膜阻力少，包装袋成型好，更美观，皮带
          不易磨损。

4．采用伺服控制, 实现高精度定位，尺寸准确。

5．采用外置式放膜机构，包装膜安装更简单、更容易。

6．包装袋的偏差调整只需在触摸屏上调整即可，操作简单。

7．整机采用封闭式机构，有效防止粉尘进入机器内部。

 Technical characteristics

1. PLC control with stable£¬reliable biaxial high accuracy output and
color touch screen, bag-making, measuring, filling, printing,cutting ,
finished in one operation.

2. Separate circuit boxes for pneumatic control and power control.
Noise is low, and the circuit is more stable.

3. Film-pulling with servo motor double belt: less pulling resistance,
bag is formed in good shape with better appearance, belt is resistant to
be worn-out.

4. Double servo control, high precision orientation, size more nicety.

5. External film releasing mechanism: simpler and easier installation
of packing film.

6. Adjustment of bag deviation just needed to be controled by the touch
screen. Operation is very simple .

7. Close down type mechanism , defending powder into inside of machine.

技术要点：

1． 采用电子秤量方式，包装重量更精确，生产成本更低廉。

Technical characteristics:

1． Multihead weigher measuring , packing weight more precision ,
product cost more low.

适用包装范围：

适合包装颗粒状、片状、条状，如薯片、锅巴。虾条、五谷杂粮、中药饮片
    果冻、大蒜、速冻饺子、速冻汤圆。花生等2000ml以内的产品。

Application

Suitable for packing of various of granule, slice , stripe , such as potato chips ,
    shrimp chip, jelly, peanut. Etc . Packing with in 2000ml .

技术参数（Technical parameters）:

机型（Type）	TCLB-520
制袋长度(Bag length)	80-400mm(L)
制袋宽度(Bag width)	80-250mm(W)
薄膜宽度(Max width of roll film)	520mm
包装速度(Packing speed)	5-50bags/min
计量范围(Measuring range)	2000ml(Max)
气压(Air consumption)	0.65Mpa
耗气量(Gas consumption)	0.4m³/min
电压（Power voltage）	220VAC/50HZ
功率（Power ）	4Kw
外型尺寸（Dimension）	(L)1150×(W)1795×(H)1650mm
机器重量（Deadwight of machine）	600KG
