ZGYX-454/455一体式露天潜孔钻机

1. 驾驶室宽敞、视野开阔，人性化驾驶室，强调安全性能，前窗防护栅栏。

2. 双马达回转头，摆线式液压双马达回转头，输出扭矩大，故障率极低。

3. 圆盘自动换杆器，圆盘自动换杆器，可自由挑选钻杆，延长钻具寿命。
专利设计的浮动式卷管器，消除油管变形集中点，延长使用寿命。

4. 推进梁， 油缸钢丝绳推进，推进力控制精度高，回转头运行平稳

能钻各中介角度孔和水平脚底孔。

5. 除尘装置，志高掘进的两级除尘技术领先行业。除尘清洗过滤面积大，自动连续自清式除尘。除尘滤芯阵列可以方便地拆卸，维护工作效率高；集成罩可以上下滑动，清晰观察开孔情况，进行开孔控制。

6. 强大的牵引力，履带式重型底盘，履带架液压摆动装置摆架±10°；
牵引力大，足够的越野能力提高专场效率。

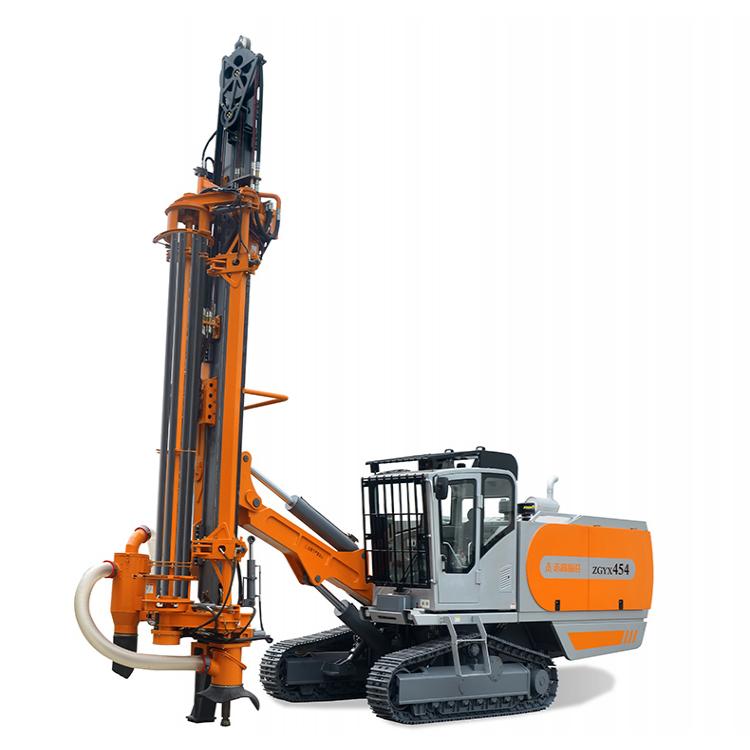

ZGYX-454/455  Integrated DTH Surface Drill Rig

1. cab spacious, wide view, humanized cab, emphasizing safety performance, front window protective fence.

 2. double motor turn head, cycloidal hydraulic double motor turn head, output torque is large, failure rate is very low.

 3. disc automatic pole changer, disc automatic pole changer, free to select drill pipe, extend the life of drill tool.

 The patent design floating pipe reel, eliminates the tubing deformation concentration point, prolongs the service life.

 4. propulsion beam, oil cylinder wire rope propulsion, propulsion control accuracy, turn head smooth operation

 Can drill each intermediary angle hole and horizontal foot bottom hole.

 5. dust removal device, Zhigao tunneling two-stage dust removal technology leading industry. Dust cleaning filter area is large, automatic continuous self-cleaning dust removal. the dust removal filter core array can be easily removed and the maintenance work efficiency is high; the integrated cover can slide up and down, clearly observe the opening condition, and carry out the opening control.

 6. strong traction, crawler heavy chassis, crawler hydraulic swing device swing ±10°;

 Large traction, enough off-road capacity to improve the efficiency of the field.
