钻机系列：
分体钻机( Separated DTH Surface Drill Rig)：
ZGYX412/412-1/412D分体式露天潜孔钻机
ZGYX412/412-1是志高公司在原有410F钻机的基础上，升级优化了产品操作台、行走部件、液压系统、推进梁、回转头，目的是*大化的提升钻机的功能。行走部件采用柱塞马达，大大延长了钻机的行走寿命。特别的操作台的改进，由原来的二人操作改成一人操作，提高工作效率的同时又降低了成本，为客户考虑得更加细致周到。
配套空压机推荐：
柴移：110SCY-10 110SCY-14.5
电移：75SDY-14.5
ZGYX412/412-1/412D Separated DTH Surface Drill Rig
ZGYX412/412-1 is that on the basis of the original 410 F drilling rig, zhigao company upgraded and optimized the product operating table, walking parts, hydraulic system, propulsion beam, rotary head, the purpose is to maximize the function of drilling rig. The running part adopts plunger motor, which greatly prolongs the walking life of drilling rig. The improvement of the special operating table, from the original two-person operation to one-person operation, improve work efficiency while reducing the cost, for customers to consider more meticulous and thoughtful.
Recommended Air compressors:
Diesel portable screw compressor:110SCY-10 110SCY-14.5
Electric portable screw compressor:75SDY-14.5
ZGYX416/416-1分体式露天潜孔钻机
该机型配置双马达回转头及回转转速可调多路阀，回转扭矩可达1950N.m,满足了Φ76钻杆、130孔径的需求，满足了部分客户对软岩层高速钻孔的需求。同时416系列机型标配工程履带、柱塞马达，使得爬坡能力更强，质量更加稳定可靠，该机型为同类机型中配置极高的产品。
配套空压机推荐：
柴移：141SCY 158SCY-17
电移：90SDY-14.5
ZGYX416/416-1 Separated DTH Surface Drill Rig
The model is equipped with dual motor rotary head and rotary speed adjustable multi-way valve, rotary torque up to 1950 N.m, to meet the Φ76 drill pipe ,130 aperture requirements, some customers for soft rock high-speed drilling requirements. At the same time 416 series model standard engineering track, plunger motor, make climbing ability stronger, quality more stable and reliable, this model is the highest configuration of the same type of products.
Recommended Air compressors:
Diesel portable screw compressor: 141SCY 158SCY-17
Electric portable screw compressor:90SDY-14.5
ZGYX-420/420-1/420D分体式露天潜孔钻机
1.该型号钻机配套动力标准分为玉柴四缸YC4D80、电动45kW两种型号。该机加强了各结构部分的强度，完全可满足各种工况的功能要求；
2.采用双摆线马达带动回转头，大大加强了钻机的扭矩，凿岩孔径范围更大；
3.新型外罩壳设计使钻机的维护使用更方便，并加强了钻机的美观度；
4. 可选装干式集尘器装置，钻凿无粉尘，更加环保、节能；
5. 420机型标准装备工程履带柱塞行走马达，爬坡更有力、质量更可靠。
配套空压机推荐：
柴移：186SCY-18
电移：132SDY-17
ZGYX-420/420-1/420D Separated DTH Surface Drill Rig
1. matching power standard of this type of drilling rig is divided into two types: Yuchai four cylinder YC4D80、 electric 45 kW. The machine strengthens the strength of each structural part, and can completely meet the functional requirements of various working conditions;
2. the double cycloid motor is used to drive the rotary head, the torque of the drilling rig is greatly enhanced, and the drilling aperture is larger.
3. the new design of the outer cover shell makes the rig more convenient to maintain and use, and strengthens the beauty of the rig;
4. optional installation of dry dust collector device, drilling without dust, more environmental protection, energy saving;
5.420 standard equipment engineering crawler plunger walking motor, climbing more powerful, more reliable quality.
Recommended Air compressors:
Diesel portable screw compressor: 186SCY-18
Electric portable screw compressor:132SDY-17
ZGYX425/425-1/425G分体式露天潜孔钻机
该产品性价比高、环保安全，节能高效的分体式潜孔钻机。广泛应用于各类露天矿山、采石场、工程工地等。是志高公司推出的新一代产品的经典之作。孔径范围110-138mm。该机车身低矮、新型罩壳设计，带机身调平功能。
配套空压机推荐：
柴移：186SCY-18 200SCY-21
电移：160SDY-13
ZGYX425/425-1/425G Separated DTH Surface Drill Rig
This product has the advantages of high cost-performance, environmental protection and safety, energy-saving and efficient split-type drilling rig. Widely used in all kinds of open pit mines, quarries, engineering sites and so on. It is the classic work of a new generation of products launched by Zhigao Company. Aperture range mm.110-138 The body of the machine is low, the new shell design, with the fuselage leveling function.
Recommended Air compressors:
Diesel portable screw compressor: 186SCY-18 200SCY-21
Electric portable screw compressor:160SDY-13
ZGYX430/430-1分体式露天潜孔钻机
1.该型钻机是志高传统的重型分体钻机，其高强度的全功能设计和高级别的配置深受广大用户的认可；
2.高压油泵带动全系高压元件，使得产品适用于各种孔径和工况；
3. 可选配*大回转扭矩5500N.m，适用于坑基锚杆、根管、大孔径麻花钻杆作业。
配套空压机推荐：
柴移：300SCY-24 200SCY-21
电移：185SDY-17
ZGYX430/430-1 Separated DTH Surface Drill Rig
1. this type of drilling rig is a traditional heavy-duty split drilling rig, its super-strength full-function design and high-level configuration is well recognized by the majority of users;
2. high-pressure oil pump drives all high-pressure components, making the product suitable for various aperture and working conditions;
3. optional maximum rotary torque of 5500 N.m, suitable for pit foundation anchor, root canal, large aperture hemp drill pipe operation.
Recommended Air compressors:
Diesel portable screw compressor:300SCY-24 200SCY-21
Electric portable screw compressor:185SDY-17
ZGYX420S/425S锚固钻机( Bolter)
1.该型钻机配套动力标准为双动力设计。标准配置φ76mm的三米钻杆或选配多种麻花钻杆。是柴、电双用机型，可随时动力切换；
2.采用大扭矩双摆线马达带动回转头，增加了钻机的扭矩，*大可达5600N.m，使得其凿岩孔径范围更大，可广泛适用于基坑锚杆、跟管、大孔径麻花钻杆作业；
3.回转双速切换阀操作方便，可满足不同扭矩和速度的作业需要。其中425S标配卸杆装置；
4.标准装配柱塞马达，国际工程机械行走履带，爬坡更有力、质量更可靠.
ZGYX420S/425S Bolter
1. the matching power standard of the rig is dual power design. A standard three-meter drill pipe φ76mm or a variety of twist drill pipes. Is the firewood, the electric dual-use model, may at any time power switch;
The 2. uses a large torque double cycloid motor to drive the rotary head, which increases the torque of the drilling rig up to 5600 N.m, which makes the drilling aperture range larger, and can be widely used in foundation pit bolt, heel pipe, large aperture hemp drill pipe operation;
3. rotary double speed switch valve is easy to operate and can meet the operation needs of different torque and speed. Among them 425 S standard discharge rod device;
4. standard assembly plunger motor, international construction machinery walking track, climbing more powerful, more reliable quality.
ZGM 1240A
本钻机是集机、液、电等技术为一体的综合体，采用“软”连接来构成这个综合体系。具有工作稳定、行走速度快、工作效率高、钻具使用寿命长、能量损耗低、操作简单及具有自动保护等多种功能，它能应用于不同的场合、不同的领域，并具有极强的应变能力，可以满足用户的多种需要。
主要用途及试用范围：适用于建筑施工、公路施工，以及其他的机械化工程。该钻车使用接卸式钻杆、钻凿垂直、倾斜、水平主打直径为90-165毫米孔，*大钻孔深度可达25米。
ZGM 1240A Separated DTH Surface Drill Rig
The drilling rig is a combination of machine, liquid, electricity and other technologies, using "soft" connection to form this integrated system. It has many functions, such as stable work, fast walking speed, high working efficiency, long service life of drilling tools, low energy loss, simple operation and automatic protection. It can be applied to different occasions, different fields, and has extremely strong strain ability, which can meet the needs of users.
Main uses and trial scope: suitable for construction, highway construction, and other mechanized works. The drill car uses the joint-unloading drill pipe, drilling vertical, inclined, horizontal main diameter of 90-165 mm hole, the maximum drilling depth can reach 25 meters.
一体钻机(Integrated DTH Surface Drill Rig):
ZGYX421T+一体钻机
1. 该钻机配套动力为玉柴YC6J190，搭配12/14.5螺杆空压机。满足80-115mm孔径，标配干式集尘器；
2. 利用其单一动力同时驱动螺杆式空压机和钻机液压系统，相比分体钻机综合油耗节能35%，保养费用下降50%；
3. 核心液压元件由欧洲进口，可靠的的液压系统大大减少了系统维护保养工作量，方便实用；
4. 强有力的双速液压行走机构，越野能力强，大扭矩的回转马达可以轻松应对卡钻；
5. 两级干式集尘装置，环保的同时也有助于提高生产效率；一体化技术，解决了工程、矿山空压机移动与远距离管理的难题。
ZGYX421T+ Integrated DTH Surface Drill Rig
1. matching power of the rig is jade wood YC6J190, with 12/14.5 screw air compressor. satisfying the aperture mm 80-115, standard dry dust collector;
2. use its single power to simultaneously drive the screw air compressor and drilling rig hydraulic system, compared with the split drilling rig comprehensive fuel consumption energy saving 35%, maintenance costs down 50%;
3. the core hydraulic components imported from Europe, reliable hydraulic system greatly reduce the system maintenance workload, convenient and practical;
4. powerful double-speed hydraulic walking mechanism, cross-country ability, large torque of the rotary motor can easily cope with the drill;
5. two-stage dry dust collection device, environmental protection is also helpful to improve production efficiency; integrated technology, solve the engineering, mine air compressor movement and long-distance management problems.
ZGYX452+
1，高端产品，低端价格，性价比高。
2，ZGYX-452一体式露天潜孔钻机利用其单一动力的同时驱动螺杆式空压机和钻机液压系统的工作原理，*重要的优势是节能，相比分体钻机综合油耗节能35%，保养费用下降50%。
3，强劲有利的双速液压行走机构，行走速度快，越野能力强。
4，大扭矩的回转马达可以轻松应对卡钻。
5，两级干式集尘装置，环保的同时也有助于提高生产效率。
6，布局合理的集成式操作台，功能明晰，操作方便。
7，核心液压元件由欧洲进口，可靠的液压系统大大减少了系统的维护保养工作量，方便实用。
8，一体化技术，解决了工程、矿山空压机移动与远距离管理的难题.
ZGYX452+ Integrated DTH Surface Drill Rig
1, high value products, attractive prices,best product to buy. 2, ZGYX-452 the working principle of the screw type air compressor and the hydraulic system of the drilling rig, the most important advantage is the energy saving, compared with the energy saving 35%, the maintenance cost is reduced by 50%.
3, strong and favorable double speed hydraulic walking mechanism, fast walking speed, strong off-road ability.
4, large torque rotary motor can easily cope with the drill.
5, two-stage dry dust collection device, environmental protection also helps to improve production efficiency.
6, reasonable layout of the integrated console, clear function, easy to operate.
7, the core hydraulic components imported from Europe, reliable hydraulic system greatly reduce the system maintenance workload, convenient and practical.
8, the integration technology, has solved the engineering, the mine air compressor movement and the long distance management difficult problem.
ZGYX423/453A
高效
自动换钎及强大的越野性能缩短了钻机辅助时间。大排量高压螺杆式空压机使得排渣彻底，更有利于凿岩速度的大幅度增加，减少钻机的消耗。强有力的推进、回转设计，在满足高速凿岩的基础上，解决了复杂岩层的卡钻难题。单人操作降低了人工成本。
环保
标配的双级干式集尘装置和选配的湿式除尘装置，在解决矿山和操作人员环保需求的同时也大幅度降低粉尘对设备本身的污染。
节能
单台发动机同时驱动螺杆式空气压缩机和液压系统，相比分体式钻机柴油机的总功率下降约35%，保养费用下降50%。
安全
履带调平装置使得钻机上下坡重心更稳，强大的作业能力减少了矿山所需设备和人员的数量，钎仓和驾驶室的保护设计杜绝了人员安全隐患。
ZGYX423/453A Integrated DTH Surface Drill Rig
High efficiency
Automatic brazing change and strong off-road performance shorten the rig auxiliary time. The large displacement high pressure screw air compressor makes the slag discharge thoroughly, which is more conducive to the large increase of drilling speed and reduce the consumption of drilling rig. Strong propulsion and rotary design, on the basis of satisfying high-speed rock drilling, solve the problem of drilling in complex rock layers. Single operation reduces labor costs.
Environmental Protection
The standard two-stage dry dust collecting device and wet dust collecting device can solve the environmental protection demand of mine and operator and reduce the pollution of dust to the equipment.
Energy conservation
A single engine simultaneously drives a screw-type air compressor and a hydraulic system, and the total power of a split-type rig diesel engine is reduced by about 35% and the maintenance cost is reduced by 50%.
Security
The crawler leveling device makes the center of gravity of the upper and lower slopes of the drilling rig more stable, and the powerful working ability reduces the number of equipment and personnel needed in the mine, and the protection design of the brazing bin and the cab eliminates the hidden danger of personnel safety.
ZGYX-660A-中型自动一体式露天顶锤钻机
1.高压系统设计，配置20kW高频104凿岩机，使得钻机具有强大的凿岩能力和优质的油耗指示。
2.折叠臂的设计，工作范围大，同时重心更稳，使得钻机*高进行速度达到每小时3.2公里。
3.顶级配置的同时，钻车在购买、使用、保养成本上与进口钻车相比大幅度降低。机仓内维修空调宽敞，所有保养点触手可及
ZGYX-660A Integrated DTH Surface Drill Rig
1. high pressure system design, equipped with 20 kW high frequency 104 drilling machine, so that the drilling rig has a strong drilling capacity and excellent fuel consumption indication.
2. the design of the folding arm, the working range is large, while the center of gravity is more stable, so that the maximum speed of drilling rig to 3.2 km per hour.
At the same time 3. the top configuration, the cost of purchase, use and maintenance of the drill car is greatly reduced compared with the imported drill car. Air conditioning in the machine warehouse is spacious, all maintenance points are within reach
ZGYX-650A一体式露天顶锤钻机
1.履带调平装置使得钻机上下坡重心更稳，履带附着力更强。钎仓和驾驶室的保护设计杜绝人员安全隐患。
2.钻机一次定位可开凿多个岩孔，灵活的钻臂和越野功能，可应对多种原始地貌的凿岩要求；
3.配备自行设计的ZY103高频液压凿岩机，使得钻机的单位能耗具有无与伦比的竞争力。
ZGYX-650A Integrated DTH Surface Drill Rig
1. track leveling device makes the center of gravity of the upper and lower slopes of the drilling rig more stable and the track adhesion is stronger. the protection design of the brazing bin and cab to eliminate the hidden danger of personnel safety.
2. drilling rig can drill multiple holes at one time, flexible drilling arm and off-road function, and can meet the drilling requirements of various original landforms;
3. equipped with self-designed ZY103 high-frequency hydraulic drilling machine, the unit energy consumption of drilling rig has unparalleled competitiveness.
ZGYX-454/455一体式露天潜孔钻机
1. 驾驶室宽敞、视野开阔，人性化驾驶室，强调安全性能，前窗防护栅栏。
2. 双马达回转头，摆线式液压双马达回转头，输出扭矩大，故障率极低。
3. 圆盘自动换杆器，圆盘自动换杆器，可自由挑选钻杆，延长钻具寿命。
专利设计的浮动式卷管器，消除油管变形集中点，延长使用寿命。
4. 推进梁， 油缸钢丝绳推进，推进力控制精度高，回转头运行平稳
能钻各中介角度孔和水平脚底孔。
5. 除尘装置，志高掘进的两级除尘技术领先行业。除尘清洗过滤面积大，自动连续自清式除尘。除尘滤芯阵列可以方便地拆卸，维护工作效率高；集成罩可以上下滑动，清晰观察开孔情况，进行开孔控制。
6. 强大的牵引力，履带式重型底盘，履带架液压摆动装置摆架±10°；
牵引力大，足够的越野能力提高专场效率。
ZGYX-454/455 Integrated DTH Surface Drill Rig
1. cab spacious, wide view, humanized cab, emphasizing safety performance, front window protective fence.
2. double motor turn head, cycloidal hydraulic double motor turn head, output torque is large, failure rate is very low.
3. disc automatic pole changer, disc automatic pole changer, free to select drill pipe, extend the life of drill tool.
The patent design floating pipe reel, eliminates the tubing deformation concentration point, prolongs the service life.
4. propulsion beam, oil cylinder wire rope propulsion, propulsion control accuracy, turn head smooth operation
Can drill each intermediary angle hole and horizontal foot bottom hole.
5. dust removal device, Zhigao tunneling two-stage dust removal technology leading industry. Dust cleaning filter area is large, automatic continuous self-cleaning dust removal. the dust removal filter core array can be easily removed and the maintenance work efficiency is high; the integrated cover can slide up and down, clearly observe the opening condition, and carry out the opening control.
6. strong traction, crawler heavy chassis, crawler hydraulic swing device swing ±10°;
Large traction, enough off-road capacity to improve the efficiency of the field.
采矿钻机(Crawler DTH Drill Rig):

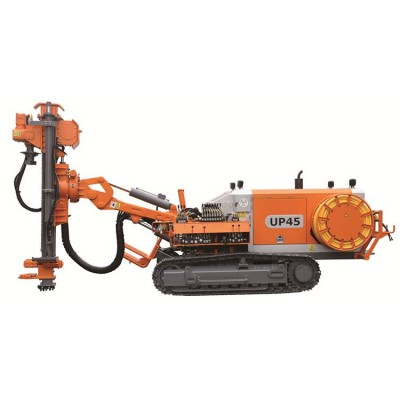

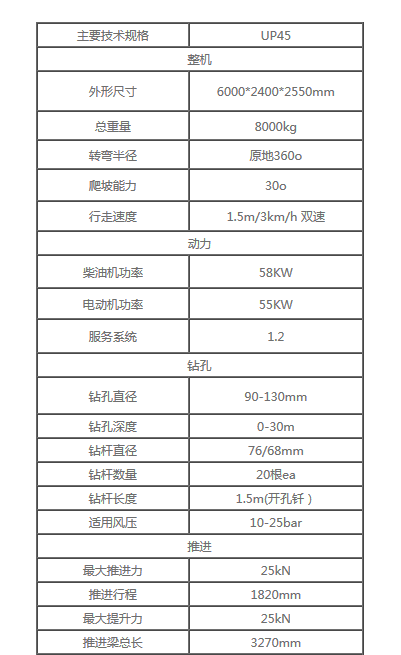

ZEGA UP45
1.ZEGA UP45履带式潜孔采矿钻机是一款我司自行研发的新型、高效、专业的地下中深孔钻机。主要用于地下采矿、抢险救灾、水利工程及天路锚固等工程。
2，该机吸收进口采矿钻机的工作能力，结合国内中深孔孔钻孔工艺和行情。一次性购置成本低，使用及维护成本低，耗材资源丰富，上手简单。
3，关键液压、电器元件使用进口品牌。确保产品在地下恶劣环境中使用的可靠性。控制系统已在市场得到充分验证，性能稳定可靠。
4，柴电双动力。柴油发动机负责行走，具备高、低2种行走速度。电动机负责工作，节能、低噪音。
5，使用水雾除尘，改善工作周边空气环境。水量可按照实际工况调节，缺水时警报提醒。
ZEGA UP45 Underground Crawler Mounted DTH Production Hole Drill
1, ZEGA UP45 crawler drilling rig is a new, efficient and professional underground drilling rig developed by our company. Mainly used in underground mining, emergency relief, water conservancy projects and Tianlu anchoring projects.
2, this machine absorbs the working capacity of imported mining drilling rig, combined with the domestic deep hole drilling technology and market. The one-time purchase cost is low, the use and maintenance cost is low, the consumables resources are abundant, the hand is simple.
3. import brand for key hydraulic and electrical components. Ensure the reliability of the product used in the underground harsh environment. The control system has been fully verified in the market, and the performance is stable and reliable.
4. Double power. Diesel engine is responsible for walking, with high and low two kinds of walking speed. Motor is responsible for work, energy saving, low noise.
5. Use water mist to remove dust and improve the ambient air. The water quantity can be adjusted according to the actual working condition, and the alarm is reminded when the water is short of water.
水机钻机(Water Well Drill Rig):
ZGSJ200/450
1. 履带式多功能水井钻机是一款全新设计的新型、高效、多功能液压钻机。主要用于钻凿水井、检测井、地热空调井等钻杆作业。
2. 配置高端，可广泛适用于多个钻井领域，结合国内外优质产品优势，关键液压元件选用进口品牌，确保整机的可靠性，是目前国内领先的水井钻车；
3. 起重卷场机可灵活吊装1.5吨以内的钻具或辅具，可以大大减轻操作者的劳动强度；
4. 配大扭矩行走马达，可在不同工况自由、快速的行走。
5. 推进、提升配有快慢档，可以提高打孔效率，大扭矩回转头，回转速度有两档，并且转速可调，适用于不同孔径和地质状况。
ZGSJ200/450 Water Well Drill Rig
1. crawler multi-function well drilling rig is a new design, high efficiency and multi-function hydraulic drilling rig. Mainly used for drilling wells, testing wells, geothermal air-conditioning wells and other drill pipe operations.
2. configuration of high-end, can be widely used in a number of drilling fields, combined with the advantages of excellent products at home and abroad, key hydraulic components selected import brand, to ensure the reliability of the whole machine, is the domestic leading first-class drilling rig;
3. hoist can be flexibly hoisted within 1.5 tons of drilling tools or accessories, can greatly reduce the labor intensity of operators;
4. equipped with large torque walking motor, can walk freely and quickly in different working conditions.
5. propulsion, lifting equipped with speed and slow gear, can improve the drilling efficiency, large torque turn head, rotary speed has two gear, and speed adjustable, suitable for different aperture and geological conditions.
掘进钻机( Drill Rig)：

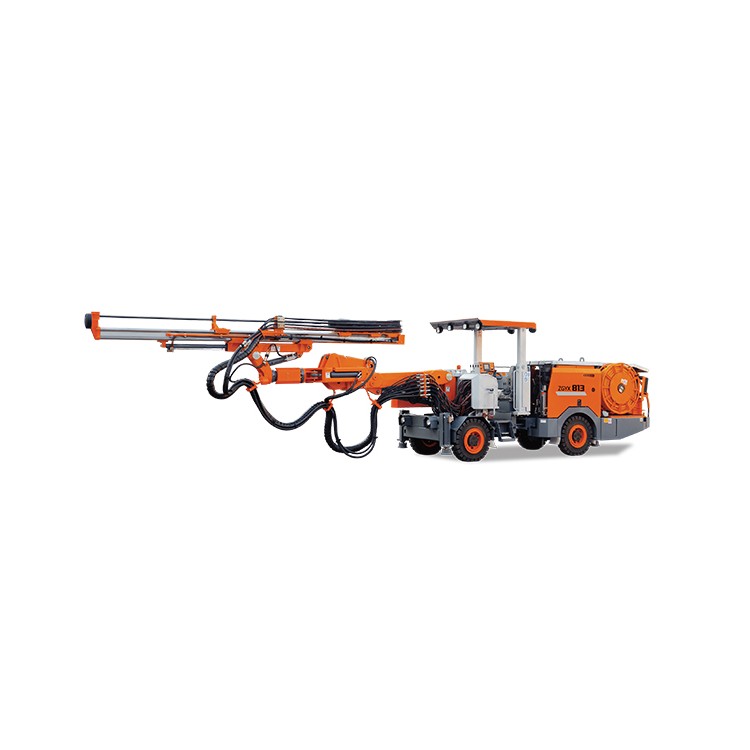

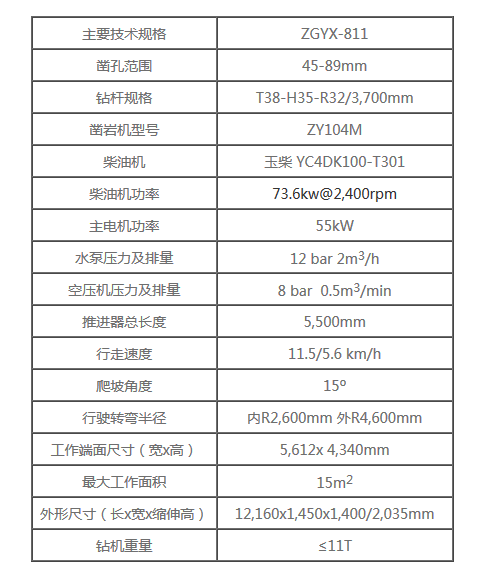

ZGYX-811
志高掘进地下单臂掘进系列钻机，广泛适用于地下矿山开采，小型隧道掘进及锚杆孔等加固工程，其精心设计的外形、配置、系统控制等各方面将会提供给客户更优质的穿孔体验。
ZGYX-811针对窄薄矿脉开采方式及巷道尺寸特点，专业化设计了具有高通过性的超窄铰连接式悬浮底盘，非常适合于地下超小巷道转场作业。采用模块化快拆卸接连的组合型设计，可非常方便的实现整机分段拆解下井及井下组装工作。
ZGYX-811 Drill Rig
Zhigao tunneling underground single-arm tunneling series drilling rig, widely used in underground mining, small tunnel excavation and anchor hole reinforcement works, its carefully designed shape, configuration, system control and other aspects will provide customers with a better perforation experience.
According to the mining method of narrow and thin veins and the characteristics of roadway size, the ZGYX-811 specially designed the super-narrow hinged suspension chassis with high passability, which is very suitable for the underground super-small roadway turning field operation. The modular quick-disassembly design can be used to realize the assembly of the whole machine.

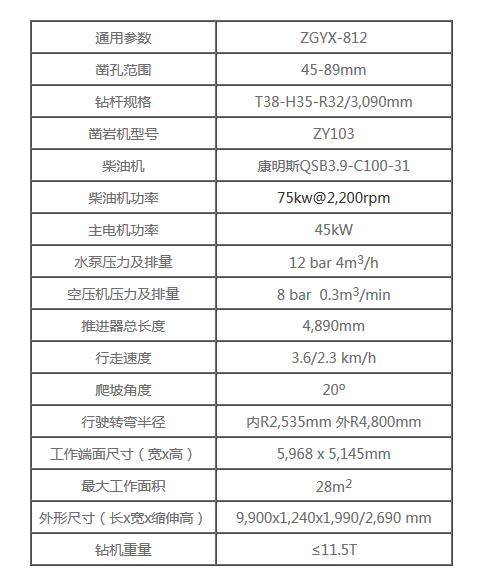

ZGYX-812
ZGYX-812掘进台车是一款专门用于小型巷道凿岩的掘进钻机，既可以实现水平爆破钻孔进，也可用于锚杆等特殊应用，配备高效的液压高频凿岩机ZY103，*大功率达15kW,特有的双缓冲机构能有效吸收反冲能量，确保钻机的寿命，自动平行定位功能确保钻孔间的平行，是一款替代人工凿岩的利器。
ZGYX-812 Drill Rig
ZGYX-812 roadheader is a kind of roadheader specially used for small tunnel drilling. It can not only achieve horizontal blasting drilling, but also be used for special applications such as anchor bolt. It is equipped with high-efficiency hydraulic high-frequency rock drill ZY103, with a maximum power of 15kw, The special double buffer mechanism can effectively absorb the recoil energy, ensure the service life of the drilling machine, and ensure the parallelism between the drilling holes with the automatic parallel positioning function. It is a sharp tool to replace the artificial drilling.

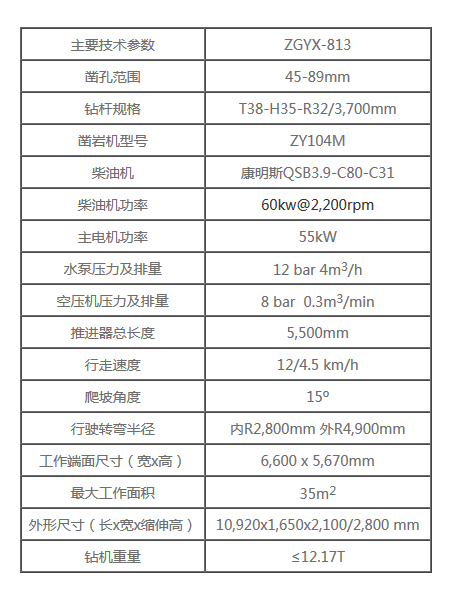

ZGYX-813
ZGYX-813掘进台车，广泛应用于地下矿山开拓，小型隧道掘进，也可用于锚杆孔等加固工程。精心设计的ZGYX-813从外型、配置、系统控制等各方面将提供给客户更优质的穿孔体验。其基于安全考虑的底盘以及升降安全顶棚，保证了设备的通过性与稳定性，使操作员能够始终处于安全的位置作业；“直接”定位的钻臂系统实现快速准确的钻孔定位；配备的ZGYX-104凿岩机功率可达20kW,其60Hz的频率是高效凿岩的有力保障，双缓冲机构减震系统、钻进自动适应系统提高穿透效率的同时有效降低了钻具的消耗，提高生产效率。
液压凿岩控制系统，拥有自动开孔、无润滑无水不冲击、回转压力自动控制推进、推进压力自动控制冲击及自动防卡钎功能；行走前后两档变速，过载爬坡时，发动机免熄火，自动适应降速及增大输出扭矩；电器系统采用CAN通讯连接技术，模块化分区域布局设计，简单线路，提高可靠性；独有的孔底冲渣功能，钻孔干净，装药 方便。
ZGYX-813 Drill Rig
ZGYX-813 tunneling trolley, widely used in underground mine development, small tunnel excavation, but also used in anchor hole reinforcement works. Carefully designed ZGYX-813 from the appearance, configuration, system control and other aspects will provide customers with a better quality perforation experience. The chassis and lifting safety roof based on safety considerations ensure the passage and stability of the equipment, so that the operator can always work in a safe position; the "direct" positioning drilling arm system to achieve rapid and accurate drilling positioning; equipped with ZGYX-104 drilling machine power up to 20 kW, its 60 Hz frequency is a powerful guarantee for efficient drilling, double buffer mechanism shock absorption system, drilling automatic adaptation system to improve penetration efficiency while effectively reducing the consumption of drilling tools, improve production efficiency.
Hydraulic rock drilling control system, with automatic opening, no lubrication, no water, no impact, rotary pressure automatic control propulsion, propulsion pressure automatic control impact and automatic anti-card brazing function; before and after two gear speed change, overload climbing, the engine without flameout, automatically adapt to reduce speed and increase output torque; electrical system using CAN communication connection technology, modular sub-area layout design, simple lines, improve reliability; unique hole bottom punching function, drilling clean, easy charge.
