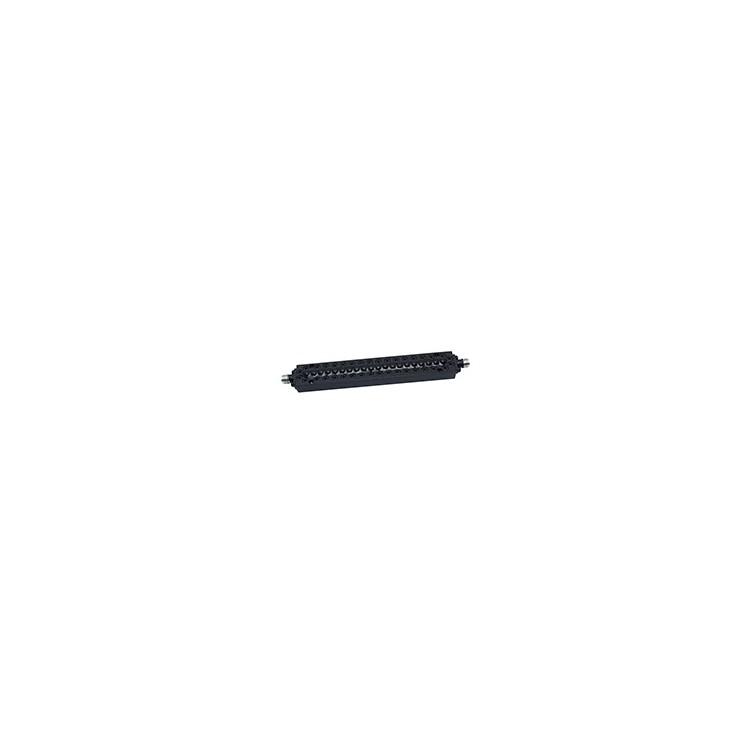

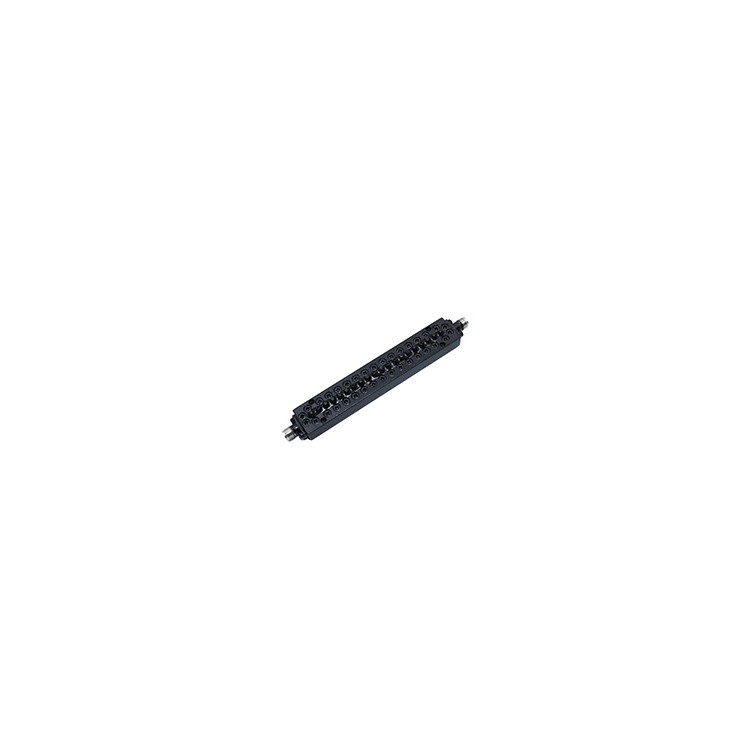

技术数据
|
S/N |
Item |
Parameters |
|
|
1 |
Center Frequency(F0) |
28GHz |
|
|
2 |
Pass Band Frequency |
23 ~ 33GHz |
|
|
3 |
Pass Band Insertion Loss |
≤1.1dB |
|
|
4 |
Pass Band Ripple |
≤0.45dB |
|
|
5 |
Pass Band Return Loss |
≥17dB |
|
|
6 |
Stop Band Rejection |
≥80dB @ DC ~ 21000MHz ≥70dB @ 21000 ~ 21500MHz |
≥65dB @ 34500 ~ 35000MHz ≥80dB @ 35000 ~ 42000MHz |
|
7 |
Impedance |
50 Ohms |
|
|
8 |
Power Handling |
5W Max. |
|
|
9 |
Connectors |
2.92mm(K)-Female |
|
|
10 |
Surface Finish |
Painted Black |
|
|
11 |
Temperature Range |
-30℃ ~ +70℃ |
|
|
12 |
Material |
Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy |
Connectors: Stainless Steel Other screw: Stainless Steel |
|
13 |
Dimensions |
80*16*9mm |
|
|
14 |
Net weight |
0.085 KG |
|
