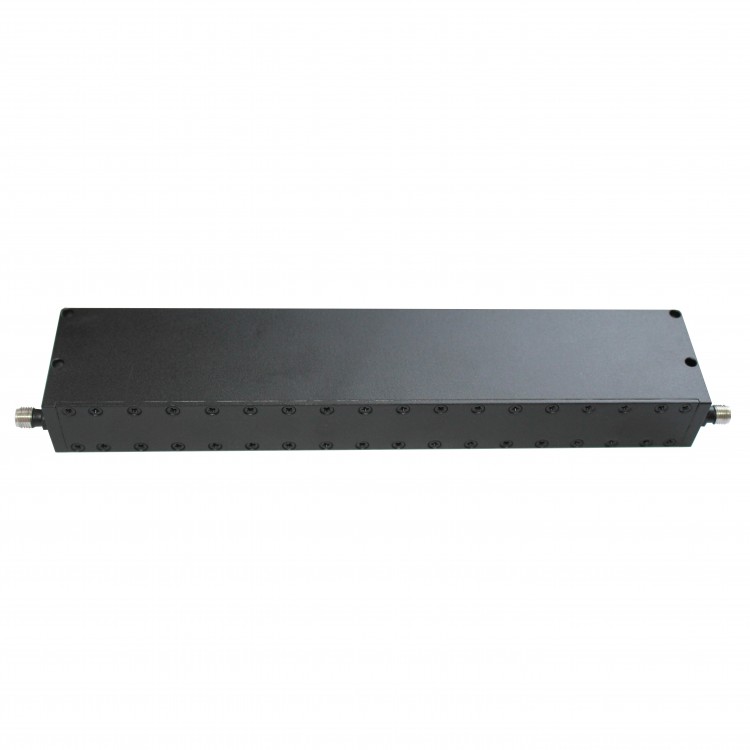

WT-A3882-R10
Cavity Band Rejection Filter
Specifications
|
Serial
|
Parameters
|
|
|
1
|
Stop Band Frequency |
2.4～2.4835GHz
|
|
2
|
Stop Band Attenuation
|
≥50dB
|
|
3
|
Pass Band Frequency
|
1MHz～2.375GHz & 2.51～6.0GHz
|
|
4
|
Pass Band Insertion Loss
|
≤2.0dB
|
|
5
|
Pass Band Return Loss |
≥12dB
|
|
6
|
Impedance
|
50 ohms
|
|
7
|
Power Handling |
≤20W
|
|
8
|
Connectors
|
SMA-Female
|
|
9
|
Surface Finish |
Black Paint
|
|
10
|
Net Weight |
0.33 KG
|
|
11
|
Configuration
|
As Below (Size Unit: mm) |
产品细节图：
